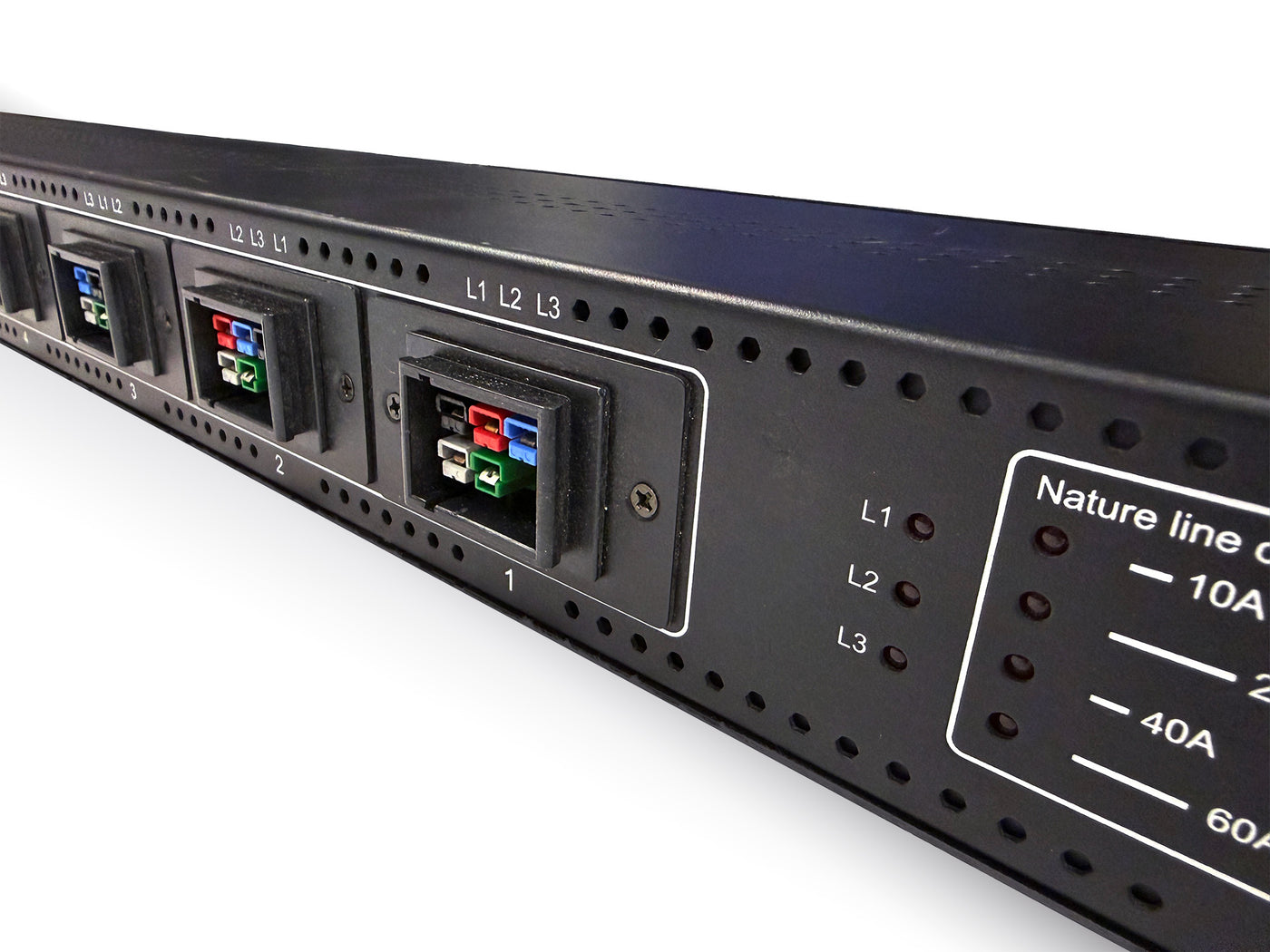

OIT-12 Industrial Power Distribution Unit | 3-Phase 100A MCB | 12-Port Rack PDU for Data Centers
Enterprise-grade platform, assembled and tested in the EU.
Product Description:
Deliver reliable, balanced power to your critical infrastructure with the OIT-12 MCB-3P 100A-B Power Distribution Unit. Engineered for data centers, server rooms, and industrial applications, this professional-grade PDU combines robust construction with intelligent design features that ensure optimal performance in demanding environments.
Why Choose the OIT-12 PDU?
This ETL and RoHS certified unit undergoes rigorous factory testing before shipping. Every detail, from the precision silk-screen labeling to the UL-certified flame-retardant wiring, reflects a commitment to quality and safety.
Key Features:
- Automatic Three-Phase Balancing – Intelligently distributes load across phases upon power-on, protecting your equipment and maximizing efficiency
- Hot-Swap Outlet Design – Individual outlets can be independently removed for maintenance without disrupting other connections
- Advanced Thermal Management – Integrated ventilation holes and cooling fan prevent overheating in high-temperature environments
- Secure Circuit Breaker Mounting – Hardware brackets prevent loosening or sinking over time
- User-Friendly Junction Box – Clear labeling and easy-access connections simplify installation
- Dust Protection Included – Covers for unused ports keep your PDU clean and protected
- Premium Finish – Surface treatment passes the cross-hatch adhesion test, ensuring long-lasting durability
Specifications:
| Specification | Details |
|---|---|
| Model | OIT-12P34-MCB-3P-100A-A |
| Voltage | 415V |
| Frequency | 50/60Hz |
| Maximum Current | 100A |
| Total Output Power | Up to 72KW |
| Outlets | 12× P34 + 1× PA14 |
| Circuit Breakers | 4× 3-Pole 40A |
| Input | 100A × 5-wire (junction box or input breaker available) |
| Max Per-Outlet Power | 5,989W (three-phase or single-phase at 415V) |
| Dimensions | 1780 × 64 × 100 mm |
| Weight | 15 kg |
| Wire Certification | UL certified, flame retardant |
| Certifications | ETL, RoHS |
Shipping & Availability
✓ In stock in Prague – Fast shipping across Czech Republic and EU ✓ Sold by Kentino s.r.o.
Need Help?
Contact us for bulk pricing, custom configurations, or technical support.
