OIT 12-Port C19 Power Distribution Unit | 3-Phase 80A MCB | Rack PDU with C13 Outlets
Enterprise-grade platform, assembled and tested in the EU.
Efficiently power your data center, server room, or mining operation with the OIT RPDU-C1912-MCB12-80A Power Distribution Unit. This robust 3-phase rack-mount PDU delivers up to 80A capacity with 12 high-power C19 outlets and additional C13 ports—ideal for servers, switches, and high-density equipment.
Why Choose This PDU?
ETL listed (Intertek certified) and CE marked, this unit meets international safety and quality standards. The distinctive orange housing ensures easy identification in busy rack environments, while the integrated cooling fan and durable construction guarantee reliable operation in demanding conditions.
Key Features:
- 12× C19 Outlets – Each rated for max 20A, perfect for high-draw server PSUs

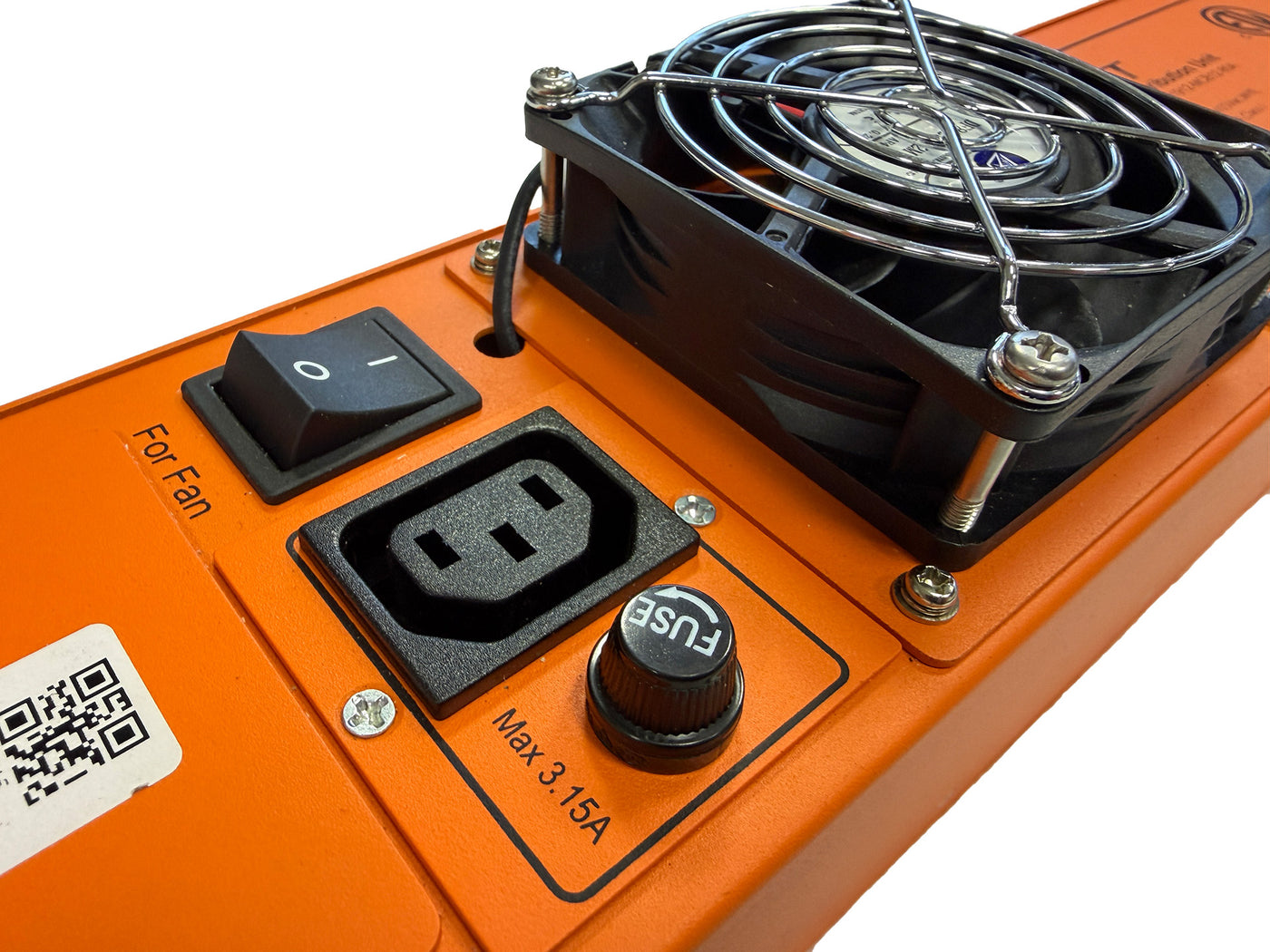

- C13 Outlets – Additional ports rated at max 3.15A for network equipment and accessories
- Individual Circuit Breakers – 12 MCBs for per-outlet protection and easy troubleshooting
- 3-Phase Input – WYE configuration for balanced load distribution
- Integrated Cooling Fan – Prevents overheating in high-temperature environments
- Industrial IEC 60309 Input – Red 5-pin connector for secure, reliable power connection
- Clear Labeling – Each outlet and breaker clearly marked for quick identification
- Rack Mountable – Slim vertical design fits standard server cabinets
Specifications:
| Specification | Details |
|---|---|
| Model | RPDU-C1912-MCB12-80A |
| Input Voltage | 220-240VAC / 380-415VAC |
| Input Configuration | 3-Phase + Neutral, WYE |
| Input Connector | IEC 60309 (Red 5-pin, 80A) |
| Maximum Current | 80A |
| Frequency | 50/60Hz |
| Class | Class I |
| C19 Outlets | 12× (Max 20A per outlet) |
| C13 Outlets | Available (Max 3.15A per outlet) |
| Output Voltage | 220-240VAC |
| Circuit Breakers | 12× Individual MCBs |
| Certifications | ETL Listed (Intertek 5014355), CE, UL STD 62368-1, CSA STD C22.2 NO 62368-1 |
| Cooling | Integrated fan |
| Origin | China |
What's in the Box:
- 1× OIT RPDU-C1912-MCB12-80A Power Distribution Unit
- Input power cable with IEC 60309 connector
Shipping & Availability
✓ In stock in Prague – Fast shipping across Czech Republic and EU ✓ Sold by Kentino s.r.o.
Need Help?
Contact us for bulk pricing, custom configurations, or technical support.
